Aluminum roof sheet roll form mill

  • Aluminum roof sheet roll form mill
  • Aluminum roof sheet roll form mill

Aluminum roof sheet roll form mill

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: the whole Wiped Anti Rust Oil, PLC controller covered by foam film; Spare parts and some small parts packed in plastic tooling box;
    Productivity: 40sets Per Month
    Brand: JCX
    Transportation: Ocean,Land
    Place of Origin: China Hebei
    Supply Ability: 40sets Per Month
    Certificate: CE, ISO
    HS Code: 8455221000
    Port: Tianjin,China,China

Product Description

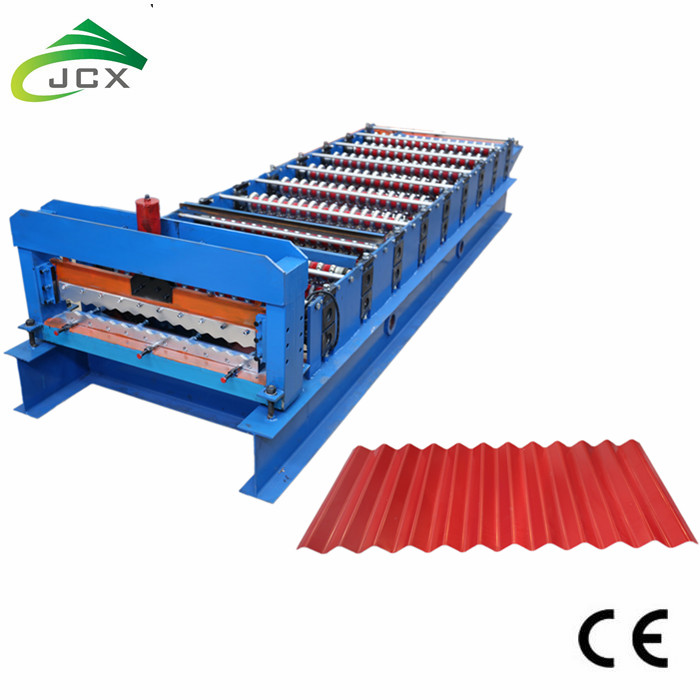

Aluminum roof sheet roll form mill

The final product can be cut as per set length controller,and the length is automatically measured by encoder.When final product reached set length,machine will stop to cut the sheet automatically.Finish thhis action,the machine will run again continuously..

Aluminum roof sheet roll form mill is designed for production of roof sheet,with PLC controller,different length can be done as your request.It iscomposed of manual decoiler,main forming machine,hydraulic guillotine,plc control box,collecting table.PPGI,aluminum,alu-zinc are used as raw material,common thickness 0.3-0.6mm for use.



Picture show

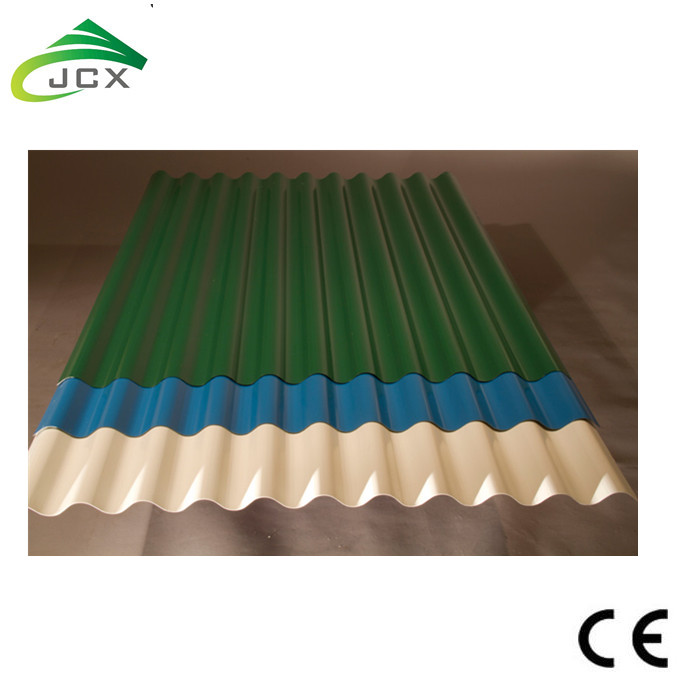

Roof Roll Form MillCorrugated Sheet




Specifications

1.PLC computer control
2.no noise,no shake
3.hydraulic system,long operating
4.easy operation
5.maintenance-free

NO. ITEM PARAMETER NOTE
1.


Suitable
material
Type Pre-painted sheet,
Galvanized sheet
Width(mm) 914/1000/1250mm
Thickness(mm) 0.3-0.7mm
Yield stress(mm) G220-G300
2. Product
specifications
Detail as the attached file
Length Any length
3. Power
requirement
Type 220v/380v/3ph/50hz Motor brand shanghai Lichao
Main Motor power 5.5kw
Cutter power 4kw
4. Forming speed(m/min) 10-15m/min Not include the time of cutting
5. Manual Decoiler

(Optional)
Type Manual
Max capacity 5t
Suitable coil OD(MM) 1000
Suitable coil
ID(MM)
508
6. Forming stand 13 Depend on actual design
7. Thickness of structure 16mm
8. Forming shaft diameter(mm) 70 solid
9. Type of cutting Roll formed and length-set cutting
10. Control system Panasonic PLC and inverter
11. Install dimension(depend on the final design) 8.2m×1.5m×1m Without panel length
12. Total weight (Approx) 5.5T Depend on final design

Introducation

  1. This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system
  2. The machine is stable,no noise,no shake
  3. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance-free
  4. cutting machine is characterized by stable driving, easy operation
  5. hydraulic system use the CDF-10 hydraulic pump, long operating life,no noise
  6. this machine is applies to roof fortification

Flow chart:

Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter


Exterior Wall Cladding Panel Roll Forming Machine

Machine Feature:

1.Precise forming

2. High-solid forming stand guarantees the goods and uniform high quality of final productd

3. The operation automatically minimizes the tolerance of cutting length

Products Feature:

1. A stylish and attractive design, giving the apperance of a traditional roof tile.

2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.


Exterior Wall Cladding Panel Roll Forming Machine
Exterior Wall Cladding Panel Roll Forming Machine

Exterior Wall Cladding Panel Roll Forming Machine
